Our Products
View All Products →
Sunlight Simulation Test Chamber
Model: Sunlight Simulation Test Chamber (1000L, 1500L)
Parameters: Volume & External Dimensions
1000L: Approx. 1480×2380×2640mm (excluding protruding parts)
1500L: 1250×2560×2300mm (lampshade detachable)
Power Supply & Rating
Power supply: AC380V ±10%, 50Hz ±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance <4Ω
Max system power: 25.3 KW
Max system current: 43.7 A
Cooling Method: Air cooling
Temperature Parameters (Test per GB/T5170-2008)
Temperature range without radiation: -40℃ ~ +120℃
Temperature range with radiation: -20℃ ~ +100℃
Temperature uniformity: ≤2℃
Temperature fluctuation: ±0.5℃
Temperature deviation: ±2℃
Average heating rate: 3℃/min
Average cooling rate: 1.5℃/min
Native Core Features
Large storage area & high heat load capacity, US PWI refrigerant control technology for low-temperature energy-saving operation, anti-condensation design for test samples, RS232 interface + USB data storage & download function, multi-point alarm monitoring + wireless remote alarm, high-efficiency dehumidification (15 ℃/5% RH)
Universal Standard Functions
Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
Applicable Standards: GJB150.7-86, GJB150A.7-2009, IEC60068-2-5, GB2423.24, DIN75220, MIL-STD810G
High and Low Temperature Explosive Decompression Test Chamber
Model: High and Low Temperature Explosive Decompression Test Chamber (1000L)
Parameters: test chamber volume: 1000L
working chamber dimensions (W×D×H): 1000×1000×1000mm
external dimensions (W×D×H): 1450×3400×2000mm
power supply: AC380V±10%, 50Hz±1, three-phase four-wire + ground wire (3/N/PE), grounding resistance < 4Ω
max. system power: 52KW
max. system current: 80.4A
cooling method: Water-cooled (refrigeration unit)
temperature range: -70℃ ~ +150℃
temperature uniformity: ≤2.0℃ (no load, normal pressure)
temperature deviation: ≤±2.0℃ (no load, normal pressure)
temperature fluctuation: ≤±0.5℃ (no load, normal pressure)
heating rate: <1℃/min (-55℃ ~ +85℃, full-cycle average, air outlet)
cooling rate: <1℃/min (+85℃ ~ -55℃, full-cycle average, air outlet)
normal pressure reduction: pressure range: normal pressure ~ 1.0KPa (adjustable); pressure reduction time: ≤30min (normal pressure → 0.5KPa)
rapid decompression: decompression range: 75.2KPa ~ 18.8KPa; decompression time < 15s; equipped with vacuum reservoir, stable at 18.8KPa after decompression, overshoot range ±5%; external rapid decompression chamber included (volume < 1/5 of main chamber)
explosive decompression: decompression range: 75.2KPa ~ 18.8KPa; decompression time < 0.1s
pressure recovery rate: <10KPa/min (adjustable)
low pressure temperature performance: temperature deviation < ±5℃; temperature fluctuation ≤±5℃ (4KPa~40KPa), ≤±10℃ (1KPa~4KPa)
pressure control accuracy: ±20mbar (≥400mbar); ±5% of target value (20mbar~400mbar); ±1mbar (≤20mbar)
test specimen requirement: Suitable for heat-dissipating and non-heat-dissipating samples; heat dissipation power shall not exceed the cooling capacity of the refrigeration system
operation remarks: Tested per GB/T 5170-2008 & GB/T 10590-2006; different ambient temperature will affect low temperature performance and cooling capacity
core functions: Support combined test of high/low temperature, humidity and pressure, energized test for specimens, Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
applicable standards: GB/T 2423.1, GB/T 2423.2, GB/T 2423.21, GB/T 2423.25, GB/T 2423.26, GJB 360B, GJB 150.2A, GJB 150.3A, GJB 150.4A, GJB 150.6, RTCA/DO-160G
Xenon Lamp Test Chamber
Model: Xenon Lamp Test Chamber (182L, 295L, 468L, 688L, customizable)
Parameters: Volume & Dimensions
182L: Inner 650×400×700mm, Outer 1200×1200×1800mm
295L: Inner 650×650×700mm, Outer 1200×1450×1800mm
468L: Inner 650×900×800mm, Outer 1200×1700×1900mm
688L: Inner 900×900×850mm, Outer 1550×2105×2055mm (Excluding protruding parts)
Power Supply & Rating
Power supply: AC380V±10%, 50Hz±1, 3-phase four-wire + grounding wire (3/N/PE), grounding resistance <4Ω
Max system power: 182L≈5.8KW, 295L≈9.1KW, 468L≈10.9KW, 688L≈17.5KW
Max system current: 688L≈30.5A
Cooling Method: Air-cooled type
Temperature Parameters
Radiation-free temp range: 20℃～100℃
Radiation temp range: 20℃～80℃
Temperature uniformity: ≤2℃, Temperature fluctuation: ±0.5℃, Temperature deviation: ±2℃
Average heating rate: 2℃/min, Average cooling rate: 1.5℃/min
Temperature & Humidity Climate
Temp range: +20℃～+80℃
Humidity range: 20%RH~98%RH (No light); 30%RH~75%RH (With illumination)
Humidity uniformity: 3%RH (>75%RH), 6%RH (≤75%RH)
Humidity fluctuation: ±2.0%RH
Humidity deviation: +2%~-3%RH (>75%RH), ±5.0%RH (≤75%RH)
Solar Radiation Parameters
Irradiation area: 182L (500×250mm), 295L (500×500mm), 468L (500×750mm), 688L (6500cm²)
Spectral wavelength: 280nm~3000nm (Full spectrum simulated sunlight)
Lamp configuration (Air-cooled): 182L (1.8KW×1), 295L (1.8KW×2), 468L (1.8KW×3)
Irradiance intensity: ① 35~68W/m² @300~400nm (error ±6W/m²); ② 0.3~0.57W/m² @340nm (error ±0.02W/m²)
Core Functions
Native features: Simulate natural sunlight / glass-filtered sunlight, black panel & chamber temperature control, dew/rain/humidity simulation, accelerated aging test, programmable test setting
Universal features: Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
Applicable Standards: GJB150.7-86, GJB150A.7-2009, IEC60068-2-5, GB2423.24, DIN75220, ASTM G155, GB/T 16422.2, GB/T 1865
High Temperature Aging Test Chamber
Model: Test Chamber: EWG2003, EWG3003, EWG2010, EWG3010; Aging Room: EWG25, EWG45, EWG100, EWG120
Parameters: Small High Temperature Aging Chamber
Model & Volume: EWG2003(270L), EWG3003(270L), EWG2010(1000L), EWG3010(1000L)
Temperature range: EWG2003/EWG2010 (R.T+20~200℃); EWG3003/EWG3010 (R.T+20~300℃)
Temperature constancy: ±0.1~±0.8℃
Temperature homogeneity: ±0.5~±2.0℃ (R.T+20~200℃); ±1.5~±3.5℃ (200~300℃)
Temperature deviation: ±0.5~±2.0℃
Heat up time: 50min (R.T→200℃), 90min (R.T→300℃)
Inner dimensions: 600×500×900mm (270L); 850×700×1000mm (1000L)
Outer dimensions: 1000×780×1710mm (270L); 1250×980×1850mm (1000L)
### Large Aging Room
Model & Volume: EWG25(25m³), EWG45(45m³), EWG100(100m³), EWG120(120m³)
Temperature range: R.T+10~85℃
Temperature constancy: ±0.5~±1.0℃
Temperature homogeneity: ±1.5~±3.0℃
Temperature deviation: ±1.5~±3.0℃
Average heating rate: 2℃/min
### Universal Parameters
Power supply: AC380V±10%, 50HZ, 3/N/PE
### Core Functions
Built-in features: Precise temperature control, uniform temperature distribution, over-temperature protection, alarm & fault safety mechanism, energy-saving design, programmable control for test time & temperature
General standard functions: Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
High and Low Temperature Humidity Low Air Pressure Test Chamber
Model: ETQ7025 (250L), ETQ7050 (500L), ETQ7100 (1000L), ETQ7200 (2000L)
Parameters: Test Volume & Dimensions:
ETQ7025: 250L, inner 600×600×700mm, outer 1000×1800×1880mm
ETQ7050: 500L, inner 800×700×900mm, outer 1500×2750×1900mm
ETQ7100: 1000L, inner 1000×1000×1000mm, outer 1400×3250×2000mm
ETQ7200: 2000L, inner 1400×1200×1200mm, outer 1810×3710×2310mm
Power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
Max system power: ETQ7025≈29.4kW, ETQ7050≈39.4kW, ETQ7100≈54.7kW, ETQ7200≈60.7kW
Max system current: ETQ7025≈47.2A, ETQ7050≈77.2A, ETQ7100≈95A, ETQ7200≈102.5A
Cooling method: Water-cooled type
Site requirements: Level floor & good ventilation; free from flammable, explosive & corrosive gas/dust; drainage within 2m; floor load ≥60kg/m²; ambient temp: 5℃~25℃ (optimal), 5℃~40℃ (normal); ambient humidity ≤85%RH; atmospheric pressure 86kPa~106kPa; sufficient maintenance space
Cooling water: Water temp 5℃~28℃ (full performance), 28℃~33℃ (allowable); flow ≥38 tons/hour; pipe: G2.5 inch × 2; inlet pressure 0.3~0.6MPa; pressure difference ≥0.2MPa; water quality complies with GB50050-1995
Temperature parameters: -72℃ ~ +180℃; temperature uniformity ±2.0℃; temperature fluctuation ±0.5℃; heating/cooling rate ≥10℃/min (-65℃~+125℃, linear)
Humidity parameters: 10%RH ~ 98%RH; humidity uniformity ±3.0%RH; humidity deviation ±3.0%RH
Pressure parameters: Adjustable from atmospheric pressure to 5kPa; stable operation at -55℃ & 2.7kPa; pressure reduction time ＜45min (atm → 0.5kPa)
Built-in features: APP mobile management, water-ring low-pressure control, wireless remote alarm, LCD touch screen with fault diagnosis menu, internal radiation shield, servo cooling flow control, power-off reset & automatic memory, remote service support
core functions: Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
Rain Test Chamber
Model: Rain Test Chamber (3600L)
Parameters: working volume: 3600 L
internal dimensions (W×D×H): 1500×1500×1600mm
external dimensions (W×D×H): approx 5100×2400×6770mm (subject to final engineering design)
power supply: AC380V ±5%, 50Hz ±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance <4Ω
max operating power: approx 52 KW (subject to final engineering design)
max operating current: approx 80 A (subject to final engineering design)
installation requirements: Level & well-ventilated ground; free from flammable, explosive & corrosive gas/dust; no strong vibration, direct sunlight or strong electromagnetic radiation; ambient temperature: 5℃ ~ 30℃, ambient humidity: ≤85% RH, atmospheric pressure: 86 kPa ~ 106 kPa; sufficient maintenance space reserved
compressed air supply: pressure 0.6 MPa ~ 0.7 MPa, air quality meets ISO 8573-1 Class 2.8.3
temperature range: R.T.+10℃ ~ 55℃ (specimen pre-heating controllable)
temperature deviation: ±2.0℃
temperature fluctuation: ±0.5℃
horizontal wind speed: 5 ~ 18 m/s, air inlet area: 800mm × 1000mm, rainfall impact angle: 0~45° adjustable
rainfall intensity: 100 mm/h ~ 280 mm/h (adjustable)
raindrop velocity: 9 m/s
raindrop diameter (rain test): 0.5 mm ~ 4.5 mm
rain test duration: 0 ~ 999 min (adjustable)
nozzle spacing: 710 mm
spray pressure: ≥276 kPa
spray droplet diameter: 0.5 mm ~ 4.5 mm
spray distance: 450 mm ~ 500 mm
drip orifice diameter: Ø0.5 mm
droplet diameter (drip tray): 0.5 mm ~ 4.5 mm
typical drip rate: 140 L/m²·h, 280 L/m²·h (other rates adjustable)
drip tray lifting height: >1000 mm (motor-driven & adjustable)
drip tray area: 1000 mm × 1000 mm
floor load capacity: ≤150 kg (uniformly distributed load)
core structure: Modular removable & replaceable nozzles, automatic water recycling & filtration system, single hinged door with observation window & manual lock, Ø100mm test lead port, built-in LED lighting & drainage recovery system
core functions: Multiple rain test modes (rain / water spray / dripping), adjustable rainfall angle & intensity, automatic water circulation, Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
applicable standards: GB 150.8A-2009
Sand and Dust Test Chamber
Model: Sand and Dust Test Chamber (3375L)
Parameters: test volume: 3375 L
internal dimensions (W×D×H): 1500×1500×1500mm
external dimensions (W×D×H): approx 4800×2000×2450mm (subject to engineering design)
power supply: AC380V ±5%, 50Hz ±1, three-phase four-wire + grounding (3/N/PE), grounding resistance <4Ω
max operating power: approx 42.1 KW (subject to engineering design)
max operating current: approx 72 A (subject to engineering design)
temperature range: 23℃ ~ 80℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating / cooling rate: ≥1℃/min
dust fall amount: 10.6 g/m³ ± 7 g/m³
dust blowing wind speed: 1.5 ~ 8.9 m/s
test dust composition: 97% ~ 99% silica dioxide (quartz sand)
dust particle diameter: ≤149 μm
dust airflow velocity: 1.5 ~ 8.9 m/s (adjustable at air outlet)
humidity requirement: Below 30% RH throughout the test
effective airflow cross-sectional area: ≥800×800mm
turntable diameter: ≥Φ700 mm
turntable load capacity: ≥200 kg
turntable rotation speed: 3 ~ 7 r/min
core functions: Laminar airflow design to prevent eddy current, calibrated instruments for dust fall monitoring, support dust blowing / sand blowing / dust settling test, Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
applicable standards: GJB 150.12A—2009
Multi-functional Weather Resistance Comprehensive Test Chamber (Temp/Humidity/Altitude/Light/Fresh Air)
Model: Comprehensive Weather Resistance Test Chamber (3m³, 6m³, customizable)
Parameters: test volume: 3m³, 6m³ (customizable dimensions)
power supply: AC380V ±10%, 50Hz ±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance <4Ω
max system power: approx. 123.8KW (subject to final engineering design)
max system current: approx. 212.3A (subject to final engineering design)
cooling method: Water cooling
temperature range: -20℃ / -50℃ / -70℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating rate: 5℃/min (linear within -70℃ ~ +150℃)
cooling rate: 5℃/min (linear within -70℃ ~ +150℃)
humidity range: 15%RH ~ 98%RH (±3%RH)
low pressure extreme range: <7.6kPa
fresh air volume: 500 ~ 2000 L/min (adjustable)
fresh air temperature: 0℃ ~ 60℃, -20℃ ~ 60℃, -40℃ ~ 60℃ (optional)
light wavelength: 280nm ~ 3000nm
irradiance intensity: 55 ~ 1200 W/m²
core functions: Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
Composite Salt Spray & Temperature Humidity Test Chamber
Model: Composite Salt Spray Temperature and Humidity Test Chamber (5m³)
Parameters: test volume: 5 m³
chamber dimensions (W×D×H): 1700×1500×2000mm
overall dimensions (W×D×H): approx 2430×2300×3370mm (excluding protruding parts)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 21 kW (subject to final engineering design)
max system current: approx 38 A (subject to final engineering design)
temperature range: 0℃ ~ +100℃
salt spray chamber temperature: RT ~ 55℃ (adjustable)
pressure tank temperature: RT ~ 70℃ (adjustable)
temperature uniformity: ≤2℃ (no load, steady state)
temperature fluctuation: ±0.5℃ (no load, steady state)
temperature deviation: ±2℃ (no load, steady state)
temperature overshoot: ≤2.5℃
heating rate: ≥1℃/min (0℃ ~ +85℃, overall average)
cooling rate: ≥1℃/min (+85℃ ~ 0℃, overall average)
temperature control range for humidity: +20℃ ~ +85℃
humidity range: 20%RH ~ 98%RH
critical temperature & humidity control points: 20℃, 30%RH; 20℃, 95%RH; 40℃, 20%RH; 85℃, 20%RH; 85℃, 95%RH
salt spray deposition rate: 1 ~ 3 mL/80cm²·h (adjustable, average value collected over ≥16h)
number of salt spray collectors: ≥4 (installed inside the chamber)
spray mode: selectable constant operation (1min~9999h) or programmable cycle operation; continuous spray / programmed intermittent spray
fog removal method: Air pressure defogging; 120° apex angle sliding chamber cover
core functions: rapid defogging function, salt spray rinse function, compressed air & salt spray mode, dry salt spray mode, acid mist cleaning & salt spray purge functions, automatic water filling system, direct steam heating, conical diffuser spray tower, Pyrex precision glass nozzles (no salt crystallization blockage after 4000h continuous operation), concealed brine tank level observation window, PID digital temperature control (±0.3℃ accuracy), full fault detection system, Excellent temperature/humidity uniformity & accuracy, Complete safety interlock protection, Low noise operation, Energy-saving design, Automated data logging, High-precision temperature control, Seamless MES integration, Service life: ≥5 years for long-term stable operation
applicable standards: GB/T2423.17-2008, GB/T2423.18-2008, IEC 60068-2-11:1981, ASTM B117-2009, JIS H8502, GB/T10125-2012, ISO 9227-2006, GB/T10587-2006, GB10593.2-1990, GB/T1765-1979, GB/T1771-2007, GB/T12967.3-2008, GB/T31467.3-2015, IEC68-2-52 1996, GB/T1510.1A-2009, GB/T5170.2-2008, GB/T5170.5-2008, GB/T5170.8-2008
Salt Spray Corrosion Test Chamber
Model: Salt spray corrosion test chamber (5m³)
Parameters: test volume: 5 m³
chamber dimensions (W×D×H): 1700×1500×2000mm
overall dimensions (W×D×H): approx 2430×2300×3370mm (excluding protruding parts)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 21 kW (subject to final engineering design)
max system current: approx 38 A (subject to final engineering design)
temperature range: 0℃ ~ +100℃
salt spray chamber temperature: RT ~ 55℃ (adjustable)
pressure tank temperature: RT ~ 70℃ (adjustable)
temperature uniformity: ≤2℃ (no load, steady state)
temperature fluctuation: ±0.5℃ (no load, steady state)
temperature deviation: ±2℃ (no load, steady state)
temperature overshoot: ≤2.5℃
heating rate: ≥1℃/min (0℃ ~ +85℃, overall average)
cooling rate: ≥1℃/min (+85℃ ~ 0℃, overall average)
temperature control range for humidity: +20℃ ~ +85℃
humidity range: 20%RH ~ 98%RH
critical temperature & humidity control points: 20℃, 30%RH; 20℃, 95%RH; 40℃, 20%RH; 85℃, 20%RH; 85℃, 95%RH
salt spray deposition rate: 1 ~ 3 mL/80cm²·h (adjustable, average value collected over ≥16h)
number of salt spray collectors: ≥4 (installed inside the chamber)
spray mode: selectable constant operation (1min~9999h) or programmable cycle operation; continuous spray / programmed intermittent spray
core functions: rapid defogging function, salt spray rinse function, compressed air & salt spray test mode, compressed air dry salt spray mode, acid mist cleaning & salt spray purge functions, automatic water filling system, direct steam heating, conical diffuser spray tower, Pyrex precision glass nozzles (no salt crystallization blockage after 4000h continuous operation), concealed brine tank level observation window, 120° apex angle sliding chamber cover (prevents droplet falling), PID digital temperature control (±0.3℃ accuracy), full fault detection system
applicable standards: GB/T2423.17-2008, GB/T2423.18-2008, IEC 60068-2-11:1981, ASTM B117-2009, JIS H8502, GB/T10125-2012, ISO 9227-2006, GB/T10587-2006, GB10593.2-1990, GB/T1765-1979, GB/T1771-2007, GB/T12967.3-2008, GB/T31467.3-2015, IEC68-2-52 1996, GB/T15101A-2009, GB/T5170.2-2008, GB/T5170.5-2008, GB/T5170.8-2008
Two-zone Thermal Shock Test Chamber
Model: High and Low Temperature Two-zone Thermal Shock Test Chamber (200L)
Parameters: test volume: 200L
chamber dimensions (W×D×H): 600×550×600mm
overall dimensions (W×D×H): approx 1270×2680×2320mm (excluding protruding parts)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 61 kW (subject to final engineering design)
max system current: approx 104 A (subject to final engineering design)
cooling method: Water-cooled type (refrigeration unit)
system structure: Movable test product type, two-zone structure with pre-heat zone and pre-cool zone
compressed air source: air pressure 0.6MPa ~ 0.7MPa; pneumatic air moisture content ≤30g/m³; dry air moisture content ≤1.5g/m³ (optional)
low temperature shock range: -55℃ ~ -10℃
high temperature shock range: +60℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
pre-heat zone temperature range: +50℃ ~ +200℃, heat-up time (ambient → +200℃): approx 40 min
pre-cool zone temperature range: -80℃ ~ +70℃, cool-down time (ambient → -80℃): approx 80 min
temperature recovery time: ≤5 min
temperature transfer time: ＜10 sec
applicable standards: GB/T2423.22, MIL STD 202F method 107G, IEC 60068-2-14 (Test Na), BS 2011, DIN 40046 (Test Na), JESD22-A101-A
core functions: Long-cycle defrosting (≥700 hours), observation window design, 32-bit color screen control, Ethernet & USB data access, 4-channel load power supply control, sample anti-condensation & over-temperature/no-wind/smoke protection, network video monitoring, APP remote management, automatic room temperature recovery, maintenance reminder & remote service support
Three-zone Thermal Shock Test Chamber (MIL-STD Compliant)
Model: Three-zone Thermal Shock Test Chamber (500L)
Parameters: test volume: 500L
chamber dimensions (W×D×H): 900×800×700mm
overall external dimensions (W×D×H): approx 1950×2350×2400mm (excluding protruding parts)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 75.5 kW (subject to final engineering design)
max system current: approx 123.3 A (subject to final engineering design)
cooling method: Water-cooled type
system structure: Three-zone configuration, including fixed independent test zone, pre-heating zone and pre-cooling zone
compressed air source: air pressure 0.6MPa ~ 0.7MPa; pneumatic air moisture content ≤30g/m³; dry air moisture content ≤1.5g/m³ (optional)
low temperature shock range: -65℃ ~ -10℃
high temperature shock range: +60℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
pre-heat zone temperature range: +50℃ ~ +200℃, heat-up time (ambient → +200℃): approx 50 min
pre-cool zone temperature range: -80℃ ~ +70℃, cool-down time (ambient → -80℃): approx 80 min
temperature recovery time: ≤5 min
applicable standards: GJB 150.5-1986, MIL STD 883H, MIL STD 202G, IEC 60068-2-14, JIS C 60068-2-14, JASO D 014-4, EIA JED-2531A
core functions: Long-cycle defrosting (≥700 hours), observation window design, 32-bit color screen control, Ethernet & USB data access, 4-channel load power supply control, sample anti-condensation & over-temperature/smoke protection, network video monitoring, APP remote management, automatic room temperature recovery, maintenance reminder & remote service support
Rapid Temperature Change, Humidity & Vibration Comprehensive Test Chamber
Model: Rapid Temperature Change Humidity and Vibration Comprehensive Test Chamber (3300L)
Parameters: test volume: 3300L
chamber dimensions (W×D×H): 1500×1500×1500mm
overall dimensions (W×D×H): 5000×1960×2800mm
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 123.8 kW (subject to final engineering design)
max system current: approx 212.3 A (subject to final engineering design)
cooling method: Water-cooled type
temperature range: -72℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating rate: 5℃/min (linear within -55℃ ~ +125℃)
cooling rate: 5℃/min (linear within -55℃ ~ +125℃)
temperature control range for humidity: +10℃ ~ +90℃
humidity range: 10%RH ~ 98%RH (±3%RH)
humidity uniformity: ±5.0%RH
humidity fluctuation: ±3.0%RH
humidity deviation: +2% ~ -3%RH (>75%RH)
adjustable temperature change rate: 3~30℃/min, 10~40℃/min; linear & non-linear adjustable from 5℃/min to 20℃/min
applicable standards: GB/T 2423.1, GB/T 2423.2, GB/T 2423.22, GB/T 2423.34, GB 150.3, GB 150.4, GB 150.9, IEC60068-2, MIL-STD-202G-103B, GB899A
core functions: Programmable temperature curve & cycle program, real-time data recording & monitoring, dry air blowing for anti-condensation, 32-bit color screen control, Ethernet & USB data access, APP management, 4-channel load power supply control, over-temperature/no-wind/smoke protection, automatic room temperature recovery after test, maintenance reminder & fault record
Two-zone Thermal Stress Rapid Change Test Chamber
Model: Thermal Stress Rapid Change Test Chamber (50L)
Parameters: test capacity: 50L
chamber dimensions (W×D×H): 420×420×320mm
overall dimensions (W×D×H): approx 1170×2600×2000mm (excluding protruding parts)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 24 kW (subject to final engineering design)
max system current: approx 40 A (subject to final engineering design)
low temperature shock range: -40℃ ~ -10℃
high temperature shock range: +60℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
low temperature ramp range: -20℃ ~ -10℃
high temperature ramp range: 60℃ ~ 100℃
stress speed time: ＜10 sec (measured at air outlet)
heating temperature range: +50℃ ~ +200℃, heat-up time (ambient → +200℃): approx 40 min
cooling temperature range: -80℃ ~ +70℃, cool-down time (ambient → -80℃): approx 80 min
temperature recovery time: ＜5 min
temperature transfer time: ＜10 sec
sample heat dissipation requirement: Recommended heat dissipation of test sample ＜ 300 W, customized solution available for special demands
applicable standards: GB/T 2423.22, MIL STD 202F Method 107G, IEC 60068-2-14 (Test Na), BS 2011, DIN 40046 (Test Na), JESD22-A101-A
Rapid Temperature Change & Humidity Test Chamber
Model: Rapid Temperature Change Humidity Test Chamber (990L)
Parameters: test volume: 990L
chamber dimensions (W×D×H): 1100×950×950mm
overall dimensions (W×D×H): 1300×2770×2140mm
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance <4Ω
max system power: approx 84.6 kW (subject to final engineering design)
max system current: approx 146 A (subject to final engineering design)
cooling method: Water-cooled type
temperature range: -72℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating rate: 15℃/min (linear within -55℃ ~ +125℃)
cooling rate: 15℃/min (linear within -55℃ ~ +125℃)
adjustable temperature change rate: 3~30℃/min, 10~40℃/min; linear & non-linear adjustable from 5℃/min to 20℃/min
applicable standards: GB/T 2423.1, GB/T 2423.2, GB/T 2423.22, GJB 150.3, GJB 150.4, IEC 60068-2
core functions: Programmable temperature curve & loop program, real-time data recording & monitoring, dry air purging for anti-condensation, 32-bit color screen control, Ethernet & USB data access, APP management, 4-channel load power supply control, overheat/airflow loss/smoke protection, automatic room temperature recovery after test, maintenance reminder & fault record
Liquid-to-Liquid Thermal Shock Test Chamber
Model: EYC603S2, EYC605S2
Parameters: test volume: EYC603S2 (2.6L), EYC605S2 (4.5L)
system structure: Automatic mechanical suspension transfer type, equipped with high-temperature liquid bath, low-temperature liquid bath and cold air chamber
liquid test medium: Fluorocarbon oil, oil bath agitation immersion
high-temp tank temperature range: +70℃ ~ +150℃
low-temp tank temperature range: -65℃ ~ 0℃
temperature fluctuation: ≤ ±0.5℃
temperature uniformity: ≤ 2.0℃
temperature deviation: ≤ ±2.0℃
preheating range: +70℃ ~ +200℃, heat-up time (ambient → +200℃): approx 80 min
pre-cooling range: -70℃ ~ 0℃, cool-down time (ambient → -70℃): approx 90 min
cold air chamber: Temperature ＜ 25℃, Relative Humidity ＜ 65% RH
temperature recovery time: ＜ 5 min
temperature transfer time: ＜ 10 sec
specimen basket size: EYC603S2 (120×120×180mm), EYC605S2 (150×150×200mm)
liquid bath internal dimensions: EYC603S2 (250×350×400mm), EYC605S2 (280×380×420mm)
external dimensions: EYC603S2 (1000×1750×1910mm), EYC605S2 (1160×2020×2210mm)
power supply: AC380V ±10%, 50Hz ±1, 3-phase 4-wire + grounding (3/N/PE), grounding resistance < 4Ω
cooling method: Water-cooled type
core functions: Reinforced sealing & oil recovery design, observation window, 32-bit color screen control, Ethernet & USB data access, APP remote management, power-off memory & resume, overload/overheat/overpressure protection, network video monitoring, remote service support
Two-chamber Thermal Shock Test Chamber
Model: Stress Screening Composite Test Chamber (100L)
Parameters: test volume: 100L
working chamber dimensions (W×D×H): 500×500×400mm
overall dimensions (W×D×H): 1170×2700×2000mm
power supply: AC380V±10%, 50Hz±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance <4Ω
max system power: approx 49KW (subject to final engineering design)
max system current: approx 85A (subject to final engineering design)
cooling method: Air-cooled type
low temperature shock range: -55℃ ~ -10℃
high temperature shock range: +60℃ ~ +150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
low temperature rapid change range: -20℃ ~ -10℃
high temperature rapid change range: 60℃ ~ 100℃
stress transfer time: ＜10sec (measured at air outlet)
preheating zone temperature range: +50℃ ~ +200℃, heating time (ambient → +200℃): approx 40min
pre-cooling zone temperature range: -80℃ ~ +70℃, cooling time (ambient → -80℃): approx 80min
temperature recovery time: ＜5min (measured at air outlet)
temperature transfer time: ＜10sec
applicable standards: GB/T2423.22, MIL STD 202F method 107G, IEC 60068-2-14 (Test Na), BS 2011, DIN 40046 (Test Na), JESD22-A101-A
core functions: Overload/overheat/overpressure protection, automatic defrosting (≥700 hours), sample anti-condensation, 32-bit color screen control, Ethernet & USB data access, APP remote management, power-off memory & resume function, remote service support
High Altitude Test Chamber
Model: ETQ7200 (Temperature Chamber), ECQ7200 (Climate Chamber)
Parameters: test volume: 250L, 500L, 1000L, 2000L
internal dimensions (W×D×H): 1400×1200×1200mm
external dimensions (W×D×H): 1810×3710×2310mm
power supply: AC380V±10%, 50HZ, 3/N/PE
cooling method: Water-Cooled
ETQ7200 Temperature Parameters
temperature range: -70℃ ~ +150℃
temperature constancy: ±0.1~±0.8℃ (Atmospheric Pressure, No Load)
temperature homogeneity: ±0.5~±2.0℃ (Atmospheric Pressure, No Load)
temperature accuracy: ±2.0℃ (Atmospheric Pressure, No Load)
heat up time (+20℃ to +150℃): 60min
cooling down time (+20℃ to -60℃): 80min
ECQ7200 Climate Parameters
temperature range: +10℃ ~ +95℃
temperature constancy: ±0.1~±0.8℃ (Atmospheric Pressure, No Load)
temperature homogeneity: ±0.1~±2.0℃ (Atmospheric Pressure, No Load)
humidity range: 20~98%RH (10%RH optional)
humidity constancy: ±1~±3%RH (Atmospheric Pressure, No Load)
Universal Pressure Parameters
pressure range: Atmospheric Pressure ~ 0.5 Atm
pressure accuracy: ±2KPa (Atm ~ 40KPa); ±5% (40KPa~4KPa); ±0.1KPa (4KPa~1KPa)
pressure release time: 45min (Atm → 1KPa)
optional rapid pressure release: 75.2KPa → 18.8KPa, release time: 15sec
applicable standards: GB/T 2423.1, GJB 150.2, GB/T 2423.2, GJB 150.3, GB/T2423.21, GJB 150.4, IEC60068-2, GJB 150.6, UN38.3
structure feature: Integrated structure, front door design, equipped with circulating air duct, low pressure heat dissipation unit and complete environmental control components

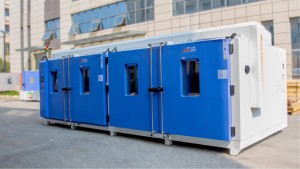

Walk-in High and Low Temperature & Humidity Test Room (ISO 16750)
Model: Walk-in High and Low Temperature Humidity Test Room (28m³, ISO 16750)
Parameters: test volume: 28m³
interior dimensions (W×D×H): 2500×5000×2250mm
overall dimensions (W×D×H): 4400×5480×2650mm
power supply: AC380V±10%, 50Hz±1, 3/N/PE, grounding resistance <4Ω
max operating power: approx 76.2KW (subject to final engineering design)
max operating current: approx 130A (subject to final engineering design)
cooling method: Water-cooled
temperature range: -40℃ ~ +100℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating rate: 3℃/min (overall average)
cooling rate: 2℃/min (overall average)
temperature range for humidity control: 10℃ ~ +85℃
humidity range: 10%RH ~ 98%RH
humidity uniformity: ±5.0%RH
humidity fluctuation: ±3.0%RH
humidity deviation: +2% ~ -3%RH (>75%RH)
applicable standards: ISO 16750, GB/T 2423.1-2008, GB/T 2423.2-2008, GB/T 2423.3-2008, GB/T 2423.4-2008, GB150.3A-2009, GB150.4A-2009, GB150.9A-2009, GB/T 5170.2-2008, GB/T 5170.5-2008, IEC60068-2-1
core functions: 32-bit color screen control, Ethernet & USB data access, APP remote management, over-temperature/smoke/power-off protection, automatic water supply & water shortage alarm, long-term low-temperature defrost-free operation, network video monitoring, remote service support
Walk-in Damp Heat Cycle Test Room
Model: Walk-in Wet Heat Cycle Laboratory (22m³)
Parameters: test volume: 22m³
working chamber dimensions (W×D×H): 2500×4000×2250mm
overall dimensions (W×D×H): 4400×4480×2650mm
power supply: AC380V ±10%, 50Hz ±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance < 4Ω
max operating power: approx 65.2KW (subject to final engineering design)
max operating current: approx 113.9A (subject to final engineering design)
cooling method: Water Cooling
temperature range: -40℃ ~ +100℃
temperature uniformity: ≤2℃
temperature fluctuation: ±0.5℃
temperature deviation: ±2℃
heating rate: 3℃/min (average over full range)
cooling rate: 2℃/min (average over full range)
temperature range for humidity: 10℃ ~ 85℃
humidity range: 10%RH ~ 98%RH
humidity uniformity: ±5.0%RH
humidity fluctuation: ±3.0%RH
humidity deviation: +2% ~ -3%RH (>75%RH)
applicable standards: GB/T 2423.1-2008, GB/T 2423.2-2008, GB/T 2423.3-2008, GB/T 2423.4-2008, GB150.3A-2009, GB150.4A-2009, GB150.9A-2009
core functions: 32-bit color screen control, Ethernet & USB data access, APP remote management, over-temperature/smoke/power-off protection, automatic water supply & water shortage alarm, long-term low-temperature defrost-free operation
Walk-in High and Low Temperature & Humidity Test Room
Model: ETCZ8/4010, ETCZ12/4010, ETCZ17/4010, ETCZ22/4010, ETCZ28/4010
Parameters: working volume: 8m³, 12m³, 17m³, 22m³, 28m³
temperature range: -40℃ ~ +100℃
temperature fluctuation: ±0.5℃
temperature uniformity: ≤2.0℃
temperature tolerance: ±2.0℃
heating rate: 3.0℃/min
cooling rate: 2.0℃/min
temperature range for humidity test: +10℃ ~ +85℃
humidity range: 10%RH ~ 98%RH
humidity fluctuation: ±3.0%RH
humidity uniformity: ±5.0%RH
humidity deviation: +2% ~ -3%RH (>75%RH), ±5.0%RH (<75%RH)
power supply: AC380V±10%, 50Hz±1, 3/N/PE, grounding resistance <4Ω
cooling method: Water-cooled
applicable standards: GB/T 2423.1-2008, GB/T 2423.2-2008, GB/T 2423.3-2008, GB/T 2423.4-2008, GB150.3A-2009, GB150.4A-2009, GB150.9A-2009, GB/T 5170.2-2008, GB/T 5170.5-2008
core functions: 32-bit color screen control, Ethernet management, USB data access, APP remote management, over-temperature/smoke/no-wind/power-off ventilation protection, automatic water supply & water shortage alarm, long-term low-temperature operation without defrosting
Internal dimensions (W×D×H):
ETCZ8/4010: 2000×2000×2000mm
ETCZ12/4010: 2000×3000×2000mm
ETCZ17/4010: 2500×3000×2250mm
ETCZ22/4010: 2500×4000×2250mm
ETCZ28/4010: 2500×5000×2250mm
External dimensions (W×D×H):
ETCZ8/4010: 3800×2480×2380mm
ETCZ12/4010: 3800×3480×2380mm
ETCZ17/4010: 4400×3480×2650mm
ETCZ22/4010: 4400×4480×2650mm
ETCZ28/4010: 4400×5480×2650mm
High and Low Temperature Humidity Test Chamber
Model: EC4018, EC7034, EC7060, EC7100, EC7150
Parameters: internal volume: 190L, 335L, 600L, 990L, 1540L
temperature range: -40℃~+150℃ / -70℃~+180℃
temperature fluctuation: ±0.5℃
temperature uniformity: ±2.0℃
heating rate (25℃ ambient): 3.0~4.0℃/min
cooling rate (25℃ ambient): 3.0℃/min
temperature range for humidity: +10℃ ~ +90℃
humidity range: 10%RH ~ 98%RH
humidity uniformity: ±3.0%RH
humidity fluctuation: ±2%~3%RH (≤75%RH), ±5.0%RH (>75%RH)
power supply: AC380V±10%, 50Hz±1%, three-phase five-wire (3/N/PE)
cooling method: Air-Cooled
applicable standards: GB/T 2423.1, GB/T 2423.2, GB/T2423.3, IEC60068-2-1, GB/T10586, GB 15093
Internal dimensions (W×D×H):
190L: 580×450×750mm
335L: 580×600×750mm
600L: 600×800×950mm
990L: 1000×800×950mm
1540L: 1000×950×950mm / 1100×900×950mm
External dimensions (W×D×H):
190L: 820×900×1560mm
335L: 820×1150×1820mm
600L: 1000×1450×2010mm
990L: 1000×1745×2010mm
1540L: 1100×1745×2030mm / 1300×2330×2030mm
Low and High Temperature Test Chamber
Model: ET4008, ET7008, ET4018, ET7018, ET4034, ET7034, ET4060, ET7060, ET4100, ET7100
Parameters: internal volume: 80L/190L/335L/600L/990L
temperature range: -40℃~+180℃ / -70℃~+180℃
temperature fluctuation: ±0.5℃
temperature uniformity: ±2.0℃
heating rate (25℃ ambient): 4.0~5.0℃/min
cooling rate (25℃ ambient): 3.0℃/min
power supply: AC380V±10%, 50Hz±1%, three-phase five-wire (3/N/PE)
cooling method: Air-Cooled
applicable standards: GB/T 2423.1, GB/T 2423.2, GB/T2423.3, IEC60068-2-1, GB/T10586, GB 15093
interface & function: RS232 interface, USB storage & download, wireless remote alarm
core technology: American PWM refrigerant control, recycled water circulation system
Internal dimensions (W×D×H):
80L: 400×400×500mm
190L: 580×450×750mm
335L: 580×765×750mm
600L: 800×800×950mm
990L: 1100×950×950mm
External dimensions (W×D×H):
80L: 620×990×1580mm
190L: 820×1560×1850mm
335L: 820×1780×1850mm
600L: 1000×1810×2020mm
990L: 1300×1960×2030mm
Low and High Temperature Test Chamber
Model: ENVSIN-AIT Series (775L/1400L/1800L/2400L/3550L, customizable)
Parameters: test volume: 775L, 1400L, 1800L, 2400L, 3550L (customizable upon request)
overall external dimensions: 1560x2000x2750mm, 1700x2200x2750mm, 1790x2400x2850mm, 2250x2700x2750mm, 3950x1980x3000mm
power supply: AC380V±10%, 50Hz±1, three-phase four-wire + grounding wire (3/N/PE), grounding resistance < 4Ω
max system power: approx 12.3KW (subject to final engineering design)
max system current: approx 24.8A (subject to final engineering design)
cooling method: air-cooling type
temperature range: -40/-70℃ ~ 150℃
temperature uniformity: ≤2℃
temperature fluctuation: ±2.5℃
heating rate: 5℃/min, 10℃/min, 15℃/min, 20℃/min (adjustable)
Temperature and Humidity Test Chamber
Model: ENVSIN-AITH Series (customizable, 775L/1400L/1800L/2400L/3550L variants)
Parameters: test volume: 775L/1400L/1800L/2400L/3550L (customizable)
temperature range: -40/-70°C to 150°C
humidity range: 15%-98%RH
heating rate: 5/10/15/20°C/min (adjustable)
temp uniformity: ≤2°C
cooling method: air-cooled
power supply: AC380V±10%, 50Hz±1, 3-phase 4-wire + ground
max power: approx. 12.3KW
overall dimensions: 1560×2000×2750mm / 1700×2200×2750mm / 1790×2400×2850mm

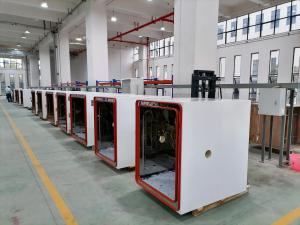

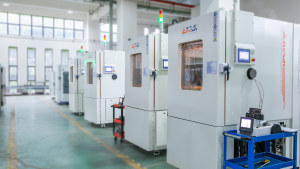

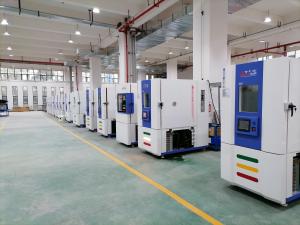

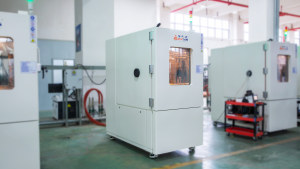

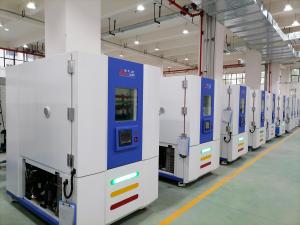

Company Gallery
Certifications & Awards
Success Stories & Case Studies
Global Consumer Electronics Giant (Apple Inc.)
24/7 unattended testing, MES-integrated quality control
Automated data logging, high-precision temperature control, seamless MES integration
Aerospace & Aviation Enterprise (CASC)
Supported domestic aircraft component airworthiness certification
Wide temp/humidity range (-70°C~150°C, 15%~98%RH), large walk-in design
Large Domestic Pharmaceutical Group
Fully comply with ICH Q1A standards, complete data traceability, help enterprises pass GMP certification
Precise control: temp ±0.5°C, humidity ±3%RH, professional pharmaceutical grade testing environment
Authoritative Third-Party Testing & Certification Institute (SIRIM)
200% increase in testing capacity; test cycles reduced from weeks to 3-5 business days; ISO 17025 compliant data traceability; supported 5 aerospace suppliers & 30+ automotive batches; 20% reduction in logistics damage for consumer electronics
Wide temp range (-70°C to 150°C), precise pressure control (simulate 2500-15000m altitude), multi-industry compatibility, temperature-pressure combined testing, LIMS-integrated data management

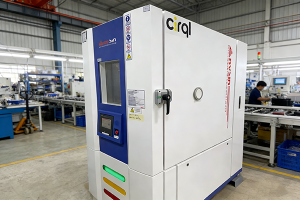

Footwear & Textile Material Manufacturer (OrthoLite subsidiary)
Validated material performance, supported brand certification & marketing claims
Multi-condition test support (85°C/85%RH, -30°C, cycling), data export for R&D

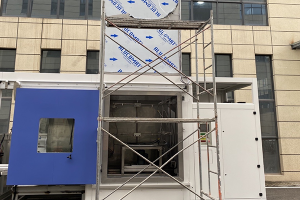

Third-party environmental testing laboratory
Streamlined multi-standard testing, reduced setup time, improved test consistency
Tri-military standard compliance (GJB/MIL-STD/GOST), high-precision rain simulation
Aerospace & Defense Testing Institution
Streamlined testing process, improved test repeatability & accuracy
Tri-military standard compliance (GJB/MIL-STD/GOST)
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
